Ripper Specifications

Features and Benefits

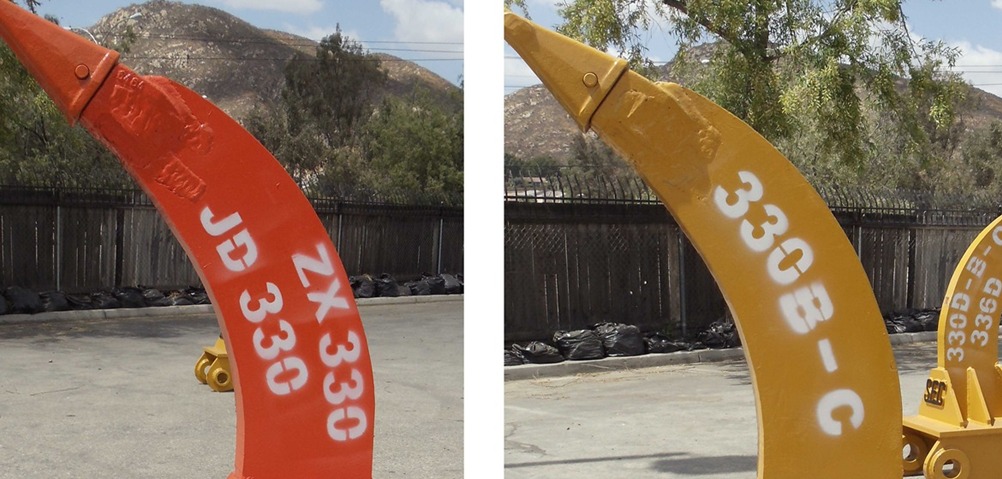

Break up frozen ground, hard soil, rock, ice, asphalt or pavement with ease. The body of the ripper is made from 1 piece of solid steel, and comes with a high quality forged metal tooth that can be easily be replaced when necessary.
Applications
  • Trenching
  • Pipeline work
  • Irrigation
  • Hard ground penetration
Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs
6 16 19.5 43.5 154 406 495 1,105 340
12 17 23.5 49 236 432 597 1,245 520
20 21 28 55 333 533 711 1,397 734
25 21.5 28 53 348 546 711 1,346 767
23.5 29 55 385 597 737 1,397 849
30 21 29.5 58 422 533 749 1,473 930
23 31 58 438 584 787 1,473 966
25 33.5 58 493 635 851 1,473 1,087
40 26 35 67 669 660 889 1,705 1,475
