Old Style Hydraulic Tilting Bucket Specifications

Features and Benefits

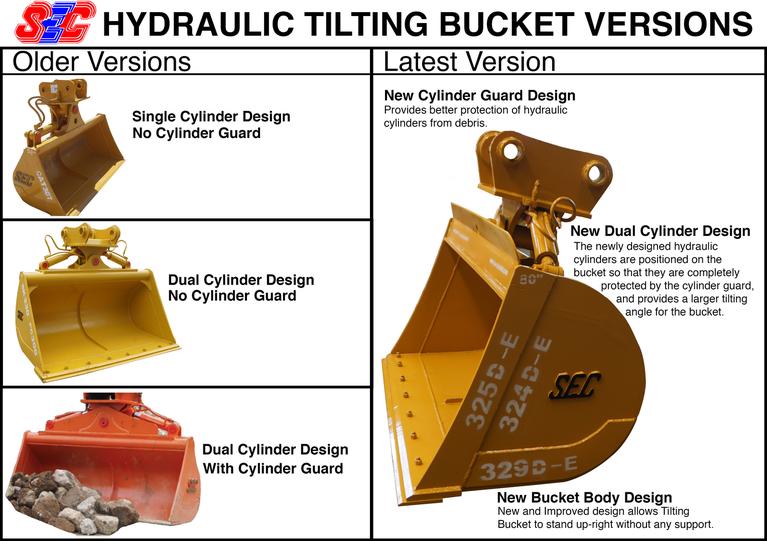

Dual hydraulic cylinders enhance the shifting and tilting of the bucket, it is designed to improve productivity when working on slopes and hills. The new dual hydraulic cylinder design increases the tilting angle of the bucket compared to older models, and positions the hydraulic cylinders so that they are completely covered by the cylinder guard, protecting the hydraulic cylinders from debris.
Applications
  • Mud clean up
  • Sloped surface trimming
  • ​Grading


Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs		 Volume
/M3		 Capacity
/M3		 Capacity
/Yd3
Backhoe 58 27 45 510 1,473 686 1,143 1,124 0.2770 0.3536 0.4624
60 27 45 526 1,524 686 1,143 1,160 0.2868 0.3658 0.4784
6 58 33 45 513 1,473 838 1,143 1,131 0.2770 0.3536 0.4624
60 33 45 516 1,524.0 838 1,143 1,138 0.2868 0.3658 0.4784
12 65 34 52 708 1,651 864 1,321 1,561 0.4489 0.5613 0.7341
68 34 52 720 1,727 864 1,321 1,587 0.4701 0.5872 0.768
20 72 42 62 1,123 1,829 1,067 1,575 2,476 0.7988 0.9693 1.2677
76 42 62 1,149 1,930 1,067 1,575 2,533 0.8443 1.0231 1.3381
80 42 62 1,184 2,032 1,067 1,575 2,610 0.8897 1.0770 1.4086
25 80 45 67 1,263 2,032 1,143 1,702 2,784 0.9380 1.1379 1.4883
83 45 67 1,303 2,108 1,143 1,702 2,873 0.9740 1.1806 1.5441
30 83 45 68 1,397 2,108 1,143 1,727 3,080 1.0348 1.2649 1.6544
86 47 68 1,436 2,184 1,194 1,727 3,166 1.0731 1.3106 1.7142


TILTING BUCKET


  VIDEO

Wear pads on the back of the body and a reversible bolt on cutting edge that can be replaced extends the life span of the bucket.


The new bucket body design allows the tilting bucket to stand up-right without any support.

Enter your inquires and info at the form.

We will get to you as soon as possible.

GET A QUOTE!

*Dimensions and weights provided are based on established production standards for attachments with pin-on mounts, but variations may occur due to the manufacturing process.
