*Dimensions and weights provided are based on established production standards for  attachments with pin-on mounts,  but variations may occur due to the manufacturing process.

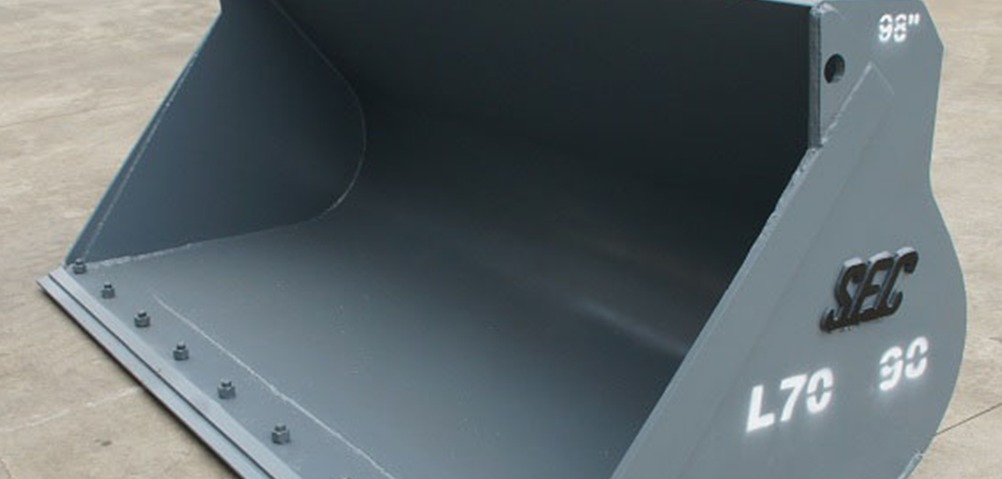

Wheel Loader Bucket with Cutting Edge Specifications

Features and Benefits

The Wheel Loader Bucket is a great tool for material loading and dumping, with a reinforced edge for durability and a reversible bolt on cutting edge that can be replaced extends the life span of the bucket. Extra wide buckets mean you can handle more material with every pass, increasing productivity and reducing cycle time. Option: Skeleton bucket tines for sifting and sorting.
Applications
  • Loading sand, aggregate and rock
  • Clean up
  • Earth moving
  • General purpose use
Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs		 Volume
/M3		 Capacity
/M3		 Capacity
/Yd3
938 F-G 102 49 46 993 2,591 1,245 1,168 2,189 1.2017 1.4508 1.8975
950 G-E-F 115 54 51 1,281 2,921 1,372 1,295 2,824 1.4434 1.7526 2.2923
966 D-E-F 122 63 56 1,538 3,099 1,600 1,422 3,391 1.9122 2.2931 2.9992
966 G-H 125 66 55.5 1,573 3,175 1,676 1,410 3,468 1.9600 2.3495 3.0730
980 G 135 72 60 2,220 3,429 1,829 1,524 4,894 3.1504 3.7033 4.8437
IT 24 94 53 48 882 2,388 1,346 1,219 1,944 1.1058 1.3371 1.7488
L70-C-E 98 50 41 897 2,489 1,270 1,041 1,978 1.1538 1.3940 1.8232
L90-C-E 102 53 49 1,086 2,591 1,346 1,245 2,394 1.2774 1.5545 2.0332
104 53 49 1,100 2,642 1,346 1,245 2,425 1.3029 1.5850 2.0731
106 53 49 1,212 2,692 1,346 1,245 2,672 1.3285 1.6154 2.1120
L120-C-E 110 58 53 1,292 2,794 1,473 1,346 2,848 1.7210 2.0676 2.7043
